Key facts
- Brand
- Haier
- Model
- L20AV6-A0
- Category
- Television
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-16
Start here

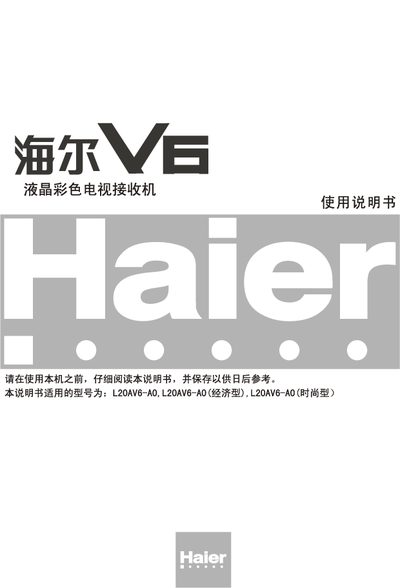

Haier L20AV6-AO Color TV Television receive machine Manual
This manual covers the operation of the Haier L20AV6-A0 LCD color TV, including remote‑control button functions, connection of external audio/video devices, and basic troubleshooting steps. It also contains safety warnings such as the risk of electric shock and advises against self‑repair.
The specification section lists the TV’s dimensions, power requirements, and performance data, while the appendix provides accessories, warranty information, and contact details for Haier support.
Haier L20AV6-A0 specifications
| Model | L20AV6-A0 (including economy and fashion variants) |
|---|---|
| Width | 550 mm |
| Thickness | 165 mm |
| Height | 450 mm |
| Net weight | 9.3 kg |
| Power supply | AC 220 V 50 Hz |
| Image/Audio standards | PAL/SECAM B/G |
| Power consumption | 60 W |
| Antenna input impedance | 758 Ω |
| Audio output | 1.3 W + 1.5 W |
| Power adapter output | 12 V DC 6.67 A |
| Operating temperature | 0 °C – 50 °C |
| Storage temperature | -20 °C – 60 °C |
Source: Haier L20AV6-AO Color TV Television receive machine Manual
All Haier L20AV6-A0 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I turn the TV on or off?
Press the power key on the remote control or the power button on the TV to switch between standby and on states.
From: Haier L20AV6-AO Color TV Television receive machine Manual
What are the dimensions and weight of the TV?
The TV is 550 mm wide, 165 mm thick, 450 mm high and weighs about 9.3 kg.
From: Haier L20AV6-AO Color TV Television receive machine Manual
