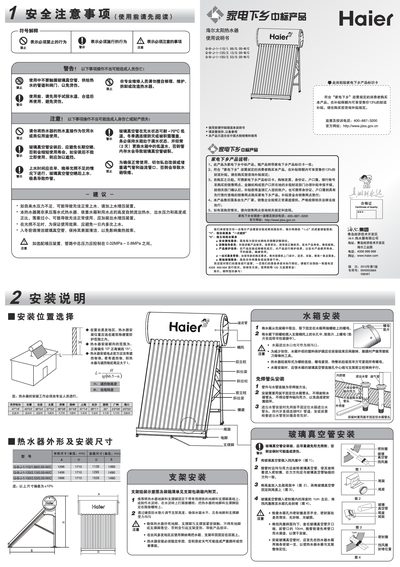

This manual begins with safety precautions, warning users about the risks of touching the glass vacuum tube, improper repairs, and the need to keep the water tank full. It also explains the importance of proper installation, including positioning the unit away from sharp objects and securing the support frame.
Installation instructions cover removing the tank from packaging, mounting the support frame, connecting inlet and outlet pipes, and ensuring proper sealing. The guide also details pipe‑connection requirements, the use of pressure‑boosting devices when water pressure is low, and the recommended operation procedures. Warranty terms, technical specifications, and a FAQ section are provided at the end. This manual is written in Chinese.
| Water tank capacity | 110 L / 125 L / 150 L |
|---|---|
| Dimensions (W × H) | 58 mm × 1800 mm |
| Glass vacuum tube pressure range | 0.02 MPa – 0.8 MPa |
| Water‑tank material | SUS304 stainless steel (food‑grade) |
| Applicable standard | GB/T 19141‑2003 |
| Number of glass vacuum tubes per model | 14 (110 L), 16 (125 L), 19 (150 L) |
Install a water‑pressure boosting device to ensure normal water flow.
The 110 L model includes 14 tubes, the 125 L model includes 16 tubes, and the 150 L model includes 19 tubes.
