Start here

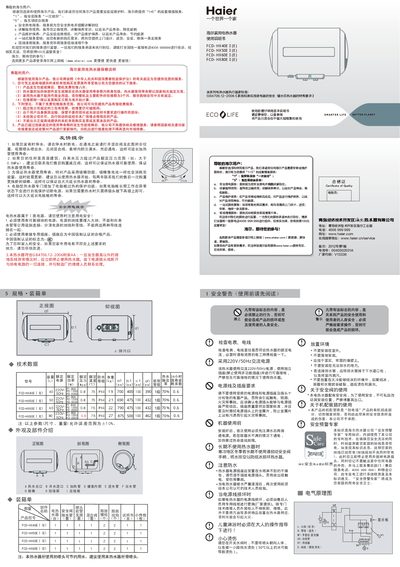

Haier FCD-HX40E / FCD-HX50E / FCD-HX60E / FCD-HX80E Water Heater User Manual
This manual begins with safety warnings and an overview of the water heater’s appearance, components and packaging. Detailed installation instructions cover wall‑mounting, electrical wiring, connection of the safety valve, mixing valve, spray head and drainage pipe, as well as required clearances and water‑pressure limits.
Subsequent sections describe how to operate the heater, set heating temperature and delay‑heating time, perform troubleshooting, and carry out regular cleaning and maintenance such as external wiping, internal flushing, and replacement of the magnesium anti‑corrosion rod. This manual is written in Chinese.
Haier FCD-HX40E specifications
| Rated Voltage | 220V |
|---|---|
| Rated Frequency | 50Hz |
| Power (Level 2) | 1200 W |
| Power (Level 3) | 2000 W |
Source: Haier FCD-HX40E / FCD-HX50E / FCD-HX60E / FCD-HX80E Water Heater User Manual
All Haier FCD-HX40E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I set the highest heating temperature?
After plugging in the power, press the power/temperature key for about one second; the display will allow you to adjust the temperature to the desired maximum.
From: Haier FCD-HX40E / FCD-HX50E / FCD-HX60E / FCD-HX80E Water Heater User Manual
How can I set a delay‑heating time?
Press the delay key once; each press increases the delay time by one hour (0‑23). The display flashes the selected value, and the heater will start heating after the set delay.
From: Haier FCD-HX40E / FCD-HX50E / FCD-HX60E / FCD-HX80E Water Heater User Manual
