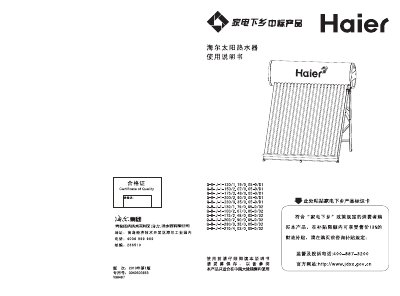

This manual provides step‑by‑step installation instructions, safety precautions, and operating procedures for Haier Q‑B‑J‑1 series solar water heaters. It covers preparation, mounting, pipe routing, controller wiring, and initial water filling.
The document also lists product specifications, warranty information, and troubleshooting tips for common issues such as no water flow, low temperature, or vacuum tube failure. This manual is written in Chinese.
| Water tank capacity | 130 L – 270 L (model dependent) |
|---|---|
| Tank material | SUS304 stainless steel |
| Rated pressure | 0.05 MPa |
| Dimensions (L×W×H) | 1.79 m × 0.05 m (example for 130 L model) |
Press the manual fill valve, open the overflow pipe, and fill the tank until water flows out of the overflow.
