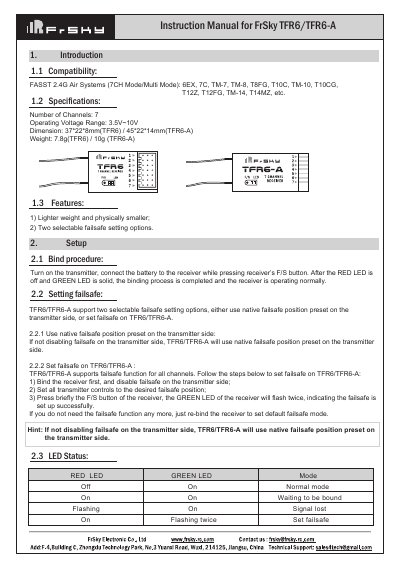

Instruction Manual for FrSky TFR6/TFR6-A receiver, introduces the product's compatibility, specifications, setup methods, LED status, etc.
The FrSky TFR6 and TFR6-A are 7-channel receivers compatible with FASST 2.4G Air Systems transmitters. The TFR6 measures 37x22x8mm and weighs 7.8g, while the TFR6-A measures 45x22x14mm and weighs 10g. Both models operate on a voltage range of 3.5V to 10V.
| Number of Channels | 7 |
|---|---|
| Operating Voltage Range | 3.5V~10V |
| Dimension (TFR6) | 37*22*8mm |
| Weight (TFR6) | 7.8g |
Turn on the transmitter, connect the battery to the receiver while pressing the receiver's F/S button until the RED LED is off and the GREEN LED is solid.
Bind the receiver first, disable failsafe on the transmitter, set all transmitter controls to the desired position, then press the F/S button briefly until the GREEN LED flashes twice.
It indicates that the failsafe has been set up successfully.
