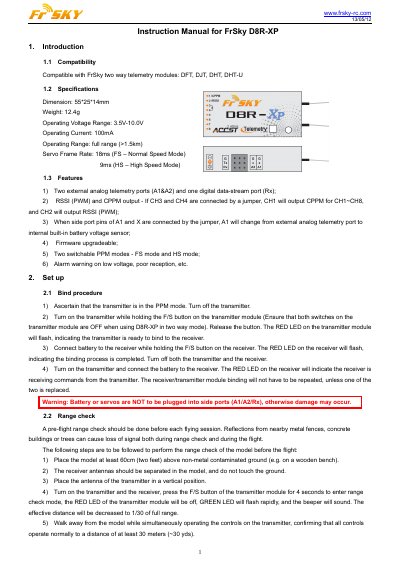

Instruction manual for FrSky D8R-XP receiver, includes receiver's compatibility, specifications, features, settings etc.
The FrSky D8R-XP is a compact receiver compatible with FrSky two-way telemetry modules including DFT, DJT, DHT, and DHT-U. It features dual PPM modes (FS and HS) for different servo speeds and supports RSSI output when channels are jumpered.
The document details the binding procedure between the transmitter and receiver, how to perform pre-flight range checks, and steps to configure failsafe positions. It also explains pin definitions for external telemetry ports and internal battery voltage sensing.
| Dimension | 55*25*14mm |
|---|---|
| Weight | 12.4g |
| Operating Voltage Range | 3.5V-10.0V |
| Operating Current | 100mA |
| Servo Frame Rate (Normal) | 18ms |
| Servo Frame Rate (High Speed) | 9ms |
It is compatible with FrSky two way telemetry modules: DFT, DJT, DHT, and DHT-U.
Turn the transmitter off, connect the battery to the receiver, press the F/S button on the receiver for 6 seconds, then release. The mode alternates each time.
Move controls to the desired position, bind the receiver, turn on both devices, then press the F/S button on the receiver briefly (less than 1 second).
