Through the analysis of this file, we found that the file is about the instructions of a product of a certain brand. The characteristics of this product are as follows:

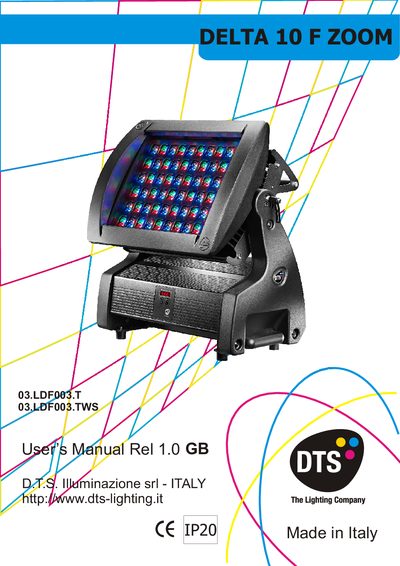

The DELTA 10 F ZOOM is a motorized LED colour changer with RGBW LEDs, offering a zoom range of 13.5°‑40° and up to 6,200 Lux at 5 m. It can be powered from 90‑260 VAC and supports both wired and optional wireless DMX control.
This manual provides safety warnings, warranty information, technical specifications, installation guidelines, wiring diagrams, DMX configuration, firmware updates and routine maintenance procedures for qualified installers and end‑users.
| Voltage range | 90‑260 VAC, 50‑60 Hz |
|---|---|
| Power consumption | 480 W (90 V‑5.3 A) |
| LED count | 240 LEDs (60 R, 60 G, 60 B, 60 W) |
| Total luminous flux | 19 500 lumens |
| Maximum illuminance | 6 200 Lux at 5 m (13.5°) |
| Colour temperature range | 2 800 K – 6 500 K |
| IP rating | IP20 |
| Weight | 18 kg |
| Warranty period | 24 months |
It operates from 90 V to 260 V AC at 50 Hz or 60 Hz.
The unit contains 240 LEDs, with 60 each of red, green, blue and white.
The fixture has an IP20 rating.
The unit is guaranteed for 24 months from the date of purchase.
