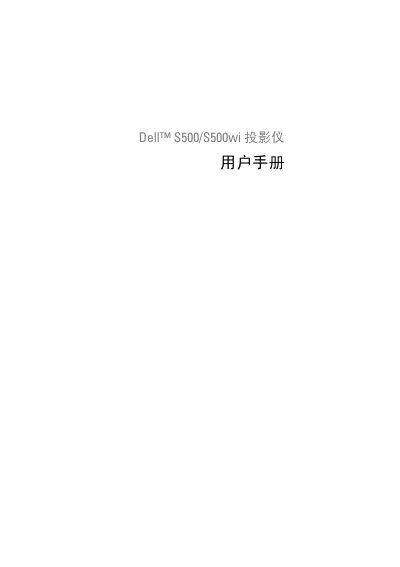

Dell S500/S500wi Projector User Manual
The Dell S500/S500wi is a WXGA (1280 × 800) projector with a 0.65" DMD, 3200 ANSI lumens brightness and a contrast ratio of 2300:1. It supports multiple video inputs including VGA, HDMI, S‑Video, component, and composite, and offers wireless networking and RS‑232 control options.
This manual covers safety precautions, package contents, detailed connection methods (VGA, HDMI, USB, RS‑232, wireless dongle), on‑screen menu navigation, wireless network setup, specifications, and troubleshooting steps such as lamp replacement and hand‑pen issues. This manual is written in Chinese.
Dell S500/S500wi specifications
| Brightness | 3200 ANSI lumens (max) |
|---|---|
| Contrast Ratio | Typical 2300:1 |
| Resolution | 1280 × 800 (WXGA) |
| Power Consumption (Normal Mode) | 345 W ±10% @ 110 Vac |
| Weight | 15.6 lb (7.08 kg) |
| Dimensions (W × H × D) | 12.9 × 7.5 × 16.6 inches |
All Dell S500/S500wi documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I connect the projector to a computer using a VGA cable?
Connect the projector to the computer with a VGA‑to‑VGA cable as described in the connection section.
What is the maximum brightness of the S500 projector?
The projector provides up to 3200 ANSI lumens of brightness.
