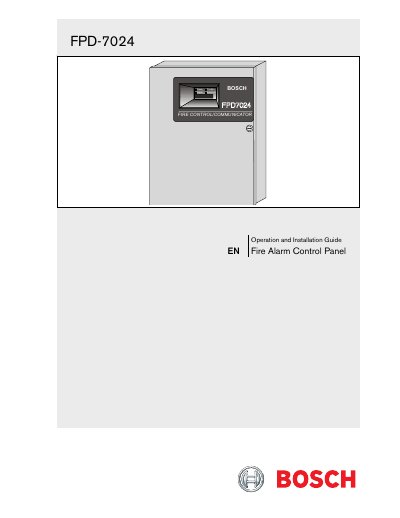

This document is an operation and installation guide for the BOSCH FPD-7024 Fire Alarm Control Panel, describing its features and characteristics.
The FPD-7024 is a fully integrated hard‑wire fire alarm control panel that supports four conventional input points (expandable to 255 with the D7039 Multiplex Expansion Module) and up to 16 users (up to 100 with the D7039). It includes a built‑in LCD keypad, dual‑line communicator, and configurable notification appliance circuits.
The guide covers enclosure installation, power and option‑bus wiring, terminal connections, system operation modes, programming features, and UL‑listed safety requirements. It also details phone line reporting, lightning protection, and optional accessories such as remote keypads and LED annunciators.
