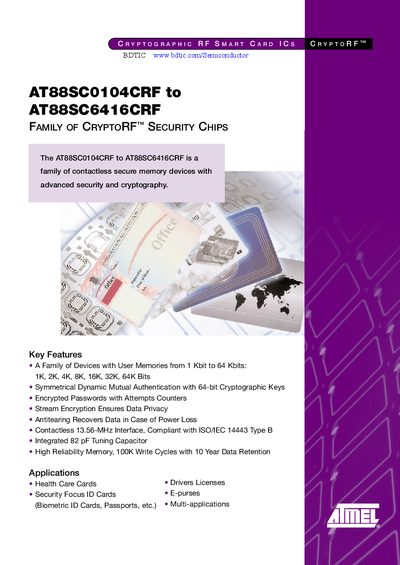

AT88SC0104CRF to AT88SC6416CRF is a family of contactless secure memory devices with advanced security and cryptography.
The AT88SC0104CRF to AT88SC6416CRF family is a range of contact‑less secure memory devices designed for smart‑card applications such as health‑care cards, driver’s licenses and biometric ID cards. They combine low‑cost RFID memory with high‑security cryptographic functions, offering a flexible solution for multi‑application security needs.
Key features include 13.56 MHz contactless communication, ISO/IEC 14443 Type B compliance, up to 64 Kbit user memory, 100 k write cycles with 10‑year data retention, integrated 82 pF tuning capacitor, and an operating distance of up to 10 cm. The devices support dynamic mutual authentication, stream encryption, and multiple password/key sets, making them suitable for a wide range of secure RF applications.
| Memory size | 1 Kbit to 64 Kbit |
|---|---|
| Interface frequency | 13.56 MHz |
| Standard compliance | ISO/IEC 14443 Type B |
| Write endurance | 100 k write cycles |
| Data retention | 10 years |
| Operating temperature | -40 °C to +85 °C |
| Tuning capacitor | 82 pF |
| Operating distance | Up to 10 cm |
| Password sets | Eight sets of two 24‑bit passwords |
The family offers user memories ranging from 1 Kbit up to 64 Kbit.
They operate at 13.56 MHz and are compliant with ISO/IEC 14443 Type B.
The memory can handle 100 k write cycles and retains data for 10 years.
They operate from –40 °C up to +85 °C.
