Start here

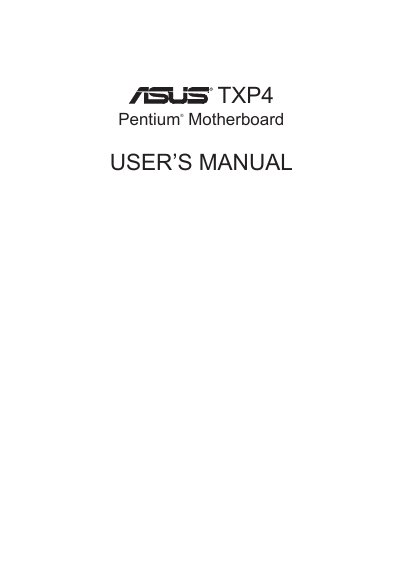

ASUS TXP4 Motherboard User Manual
The TXP4 is a Pentium‑class motherboard designed for demanding PC users, offering Intel 430TX chipset, dual power options, and extensive I/O. It supports a wide range of CPUs, up to 256 MB of SDRAM/EDO memory, and includes on‑board IDE, SCSI, and Ethernet controllers.
The manual is organized into sections on features, step‑by‑step installation, BIOS configuration, optional SCSI and LAN cards, and a Q&A on Wake‑On‑LAN. It also provides contact information, compliance statements, and troubleshooting guidance.
ASUS TXP4 specifications
| Chipset | Intel 430HX PCIset |
|---|---|
| Supported CPUs | Intel Pentium 75‑233 MHz, IBM/Cyrix 6x86, AMD K5/K6 |
| Power connectors | AT and ATX power connectors |
| Expansion slots | 2 ISA, 3 PCI, 1 shared PCI/ISA |
| Serial/parallel ports | 2 UART‑compatible serial ports, 1 parallel port (EPP/ECP) |
| IDE controller | Onboard Ultra DMA/33 Bus Master IDE, supports 4 devices up to 33 MB/s |
| Cache | 512 KB Level‑2 cache |
All ASUS TXP4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What processors are compatible with the ASUS TXP4 motherboard?
The board supports Intel Pentium 75‑233 MHz, IBM/Cyrix 6x86 and 6x86MX, and AMD K5/K6 processors.
Which power supply types does the motherboard accept?
Both AT and ATX power connectors are provided on the board.
What is Wake‑On‑LAN?
Wake‑On‑LAN provides the capability to remotely power on systems that support it by sending a wake‑up frame.
