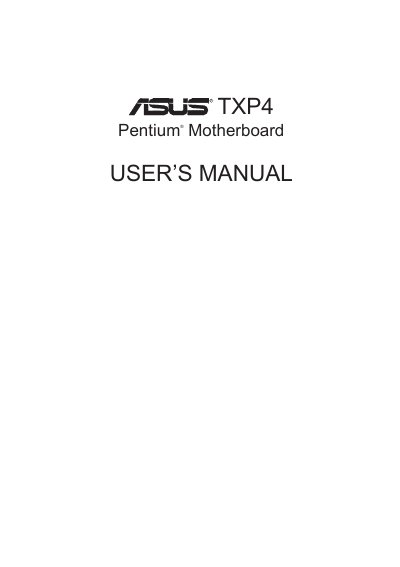

ASUS TXP4 Pentium Motherboard User Manual

This document is the user manual for ASUS TXP4 Pentium ® Motherboard, describing the features and characteristics of the product.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 60
File format: PDF
File size: 733 KB
Published: 04 May, 2012
Updated: 29 September, 2023
Model: TXP4
MD5 checksum: 6D6719A16D9EE2F64172492C6FAC6B8C
PDF: ASUS TXP4 Pentium Motherboard User Manual PDF

About this manual

This manual covers the ASUS TXP4 motherboard, detailing its features, installation steps, BIOS configuration, and optional add‑on cards. It includes safety notices, FCC compliance, and support contact information.

Key sections describe the supported processors, memory types, power connectors, expansion slots, and onboard I/O, as well as instructions for installing optional SCSI and audio cards.

What's inside

INTRODUCTION
FEATURES
INSTALLATION
BIOS SOFTWARE
BIOS SETUP
POWER MANAGEMENT
SUPPORT SOFTWARE
ASUS PCI SCSI CARDS
ASUS I-A16C AUDIO CARD

Specifications

Chipset	Intel 430HX PCIset
Supported CPUs	Intel Pentium 75‑233 MHz, IBM/Cyrix 6x86, AMD K5/K6
Power connectors	AT and ATX power connectors
Expansion slots	2 ISA, 3 PCI, 1 shared PCI/ISA
Serial/parallel ports	2 UART‑compatible serial ports, 1 parallel port (EPP/ECP)
IDE controller	Onboard Ultra DMA/33 Bus Master IDE, supports 4 devices up to 33 MB/s
Cache	512 KB Level‑2 cache

Frequently asked questions

What processors are compatible with the ASUS TXP4 motherboard?

The board supports Intel Pentium 75‑233 MHz, IBM/Cyrix 6x86 and 6x86MX, and AMD K5/K6 processors.

Which power supply types does the motherboard accept?

Both AT and ATX power connectors are provided on the board.
