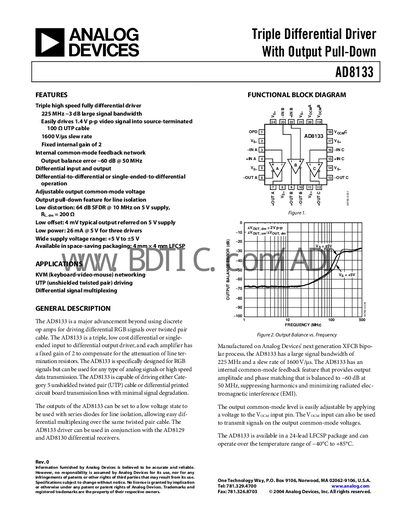

The AD8133 is a triple high speed fully differential driver from Analog Devices. It features a 225 MHz -3 dB large signal bandwidth, an adjustable output common-mode voltage, and a low distortion of 64 dB SFDR @ 10 MHz on 5 V supply. It is suitable for applications such as KVM networking and UTP networking.
The AD8133 is a triple high‑speed fully differential driver designed for RGB video signals and other high‑speed analog data transmission over Category‑5 UTP cable or differential PCB traces. It provides a fixed gain of 2, adjustable output common‑mode voltage, and an output pull‑down feature for line isolation in KVM networks.
Key features include a 225 MHz –3 dB large‑signal bandwidth, 1600 V/µs slew rate, low distortion (64 dB SFDR @10 MHz), low offset (4 mV), and low power consumption (≈28 mA quiescent). The device is supplied in a 24‑lead LFCSP package and operates over –40 °C to +85 °C.
