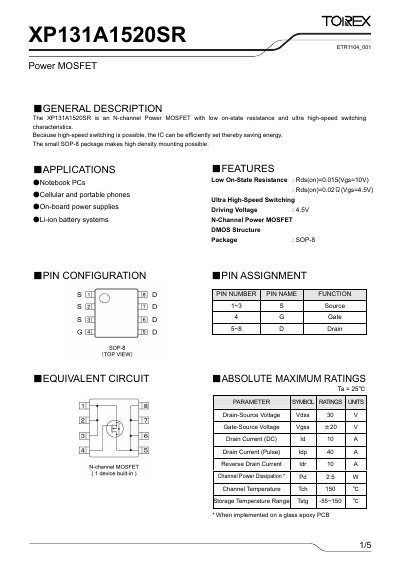

XP131A1520SR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics. It can be efficiently set to save energy and the small SOP-8 package makes high density mounting possible.
The XP131A1520SR is an N‑channel power MOSFET featuring low on‑state resistance and ultra‑high‑speed switching. It is supplied in a compact SOP‑8 package for high‑density mounting and is intended for notebook PCs, mobile phones, on‑board power supplies, and Li‑ion battery systems.
Key electrical ratings include a 30 V drain‑source voltage, ±20 V gate‑source voltage, 10 A continuous drain current, and a typical on‑state resistance of 0.015 Ω at Vgs = 10 V. Thermal resistance is 50 °C/W, and switching times are in the tens of nanoseconds range. This manual is written in Chinese.
| Drain‑Source Voltage (Vdss) | 30 V |
|---|---|
| Gate‑Source Voltage (Vgss) | ±20 V |
| Continuous Drain Current (Id) | 10 A |
| Pulse Drain Current (Idp) | 40 A |
| Reverse Drain Current (Idr) | 10 A |
| On‑State Resistance (Rds(on)) @ Vgs=10 V | 0.015 Ω |
| On‑State Resistance (Rds(on)) @ Vgs=4.5 V | 0.020 Ω |
| Input Capacitance (Ciss) | 1370 pF |
| Output Capacitance (Coss) | 740 pF |
| Turn‑On Delay Time (td(on)) | 20 ns |
| Rise Time (tr) | 25 ns |
| Turn‑Off Delay Time (td(off)) | 40 ns |
| Fall Time (tf) | 20 ns |
The device can withstand up to 30 V between drain and source.
It is supplied in an SOP‑8 surface‑mount package.
Typical applications include notebook PCs, cellular and portable phones, on‑board power supplies, and Li‑ion battery systems.
The typical on‑state resistance is 0.015 Ω when Vgs is 10 V.
