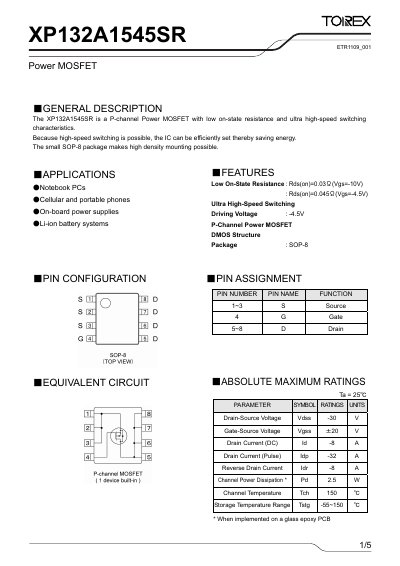

The XP132A1545SR is a P-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics. Because high-speed switching is possible, the IC can be efficiently set thereby saving energy. The small SOP-8 package makes high density mounting possible.
The XP132A1545SR is a P‑channel power MOSFET featuring a low on‑state resistance (Rds(on)=0.03 Ω) and ultra‑high‑speed switching, enabling efficient power management in compact designs. It is supplied in a small SOP‑8 surface‑mount package for high‑density mounting.
Typical applications include notebook PCs, cellular and portable phones, on‑board power supplies, and Li‑ion battery systems. The device supports a drain‑source voltage of –30 V, gate‑source voltage of ±20 V, and a continuous drain current of –8 A (pulse up to –32 A). This manual is written in Chinese.
| Drain‑Source Voltage (Vdss) | -30 V |
|---|---|
| Gate‑Source Voltage (Vgss) | ±20 V |
| Continuous Drain Current (Id) | -8 A |
| Input Capacitance (Ciss) | 1500 pF |
| Turn‑On Delay Time (td(on)) | 20 ns |
| Package | SOP‑8 |
The MOSFET can handle a continuous drain current of –8 A (DC).
It is supplied in an SOP‑8 surface‑mount package.
Typical applications are notebook PCs, cellular and portable phones, on‑board power supplies, and Li‑ion battery systems.
