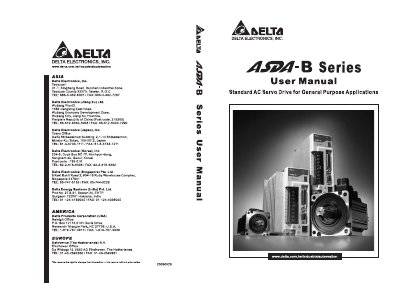

This manual guides users through installation, wiring, configuration, trial runs, and maintenance of Delta ASDA‑B series AC servo drives and compatible ECMA series servo motors. It is intended for designers, installers, operators, programmers and service personnel.
The document covers unpacking, safety precautions, wiring guidelines, display operation, control modes, parameter settings, MODBUS communication, troubleshooting, specifications, application examples and accessory lists.
| Maximum command input cable length | 3 m (9.84 ft) |
|---|---|
| Maximum encoder feedback cable length | 20 m (65.62 ft) |
| Maximum ground resistance | 100 Ω |
The command input cable may be up to 3 meters (9.84 feet) long.
Ground resistance should not exceed 100 Ω.
