This product is a D series temperature controller produced by Delta. It supports PID control and manual output control. The input types include thermocouples and platinum resistance thermometers. The output types include relays and voltage pulses.

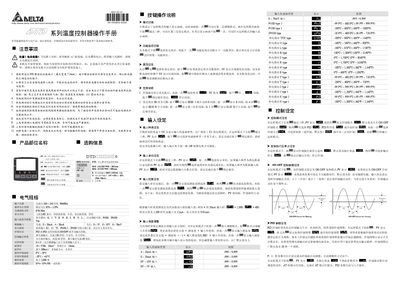

This manual provides safety precautions, installation steps, and detailed instructions for operating Delta DTD series temperature controllers. It explains how to connect power, select input sensor types, configure control modes, and set alarm parameters.
The document also lists electrical specifications, input ranges, and environmental limits, and includes troubleshooting tips for common error displays. Users are advised to read the manual fully before powering the device and to keep it accessible for future reference. This manual is written in Chinese.
| Input voltage | 100 ~ 240 V AC, 50/60 Hz |
|---|---|
| Power consumption | 6 VA max |
| Relay output | SPST, 250 VAC, 5 A |
| Sampling period | 0.4 s |
| Operating temperature range | 0 °C ~ 50 °C |
| Storage temperature range | -20 °C ~ +65 °C |
| Operating humidity | 35 % ~ 85 % RH (no condensation) |
Do not touch the AC terminals when power is applied, ensure the power supply is turned off before checking connections, and keep the device in a dust‑proof, moisture‑proof enclosure.
