The main characteristics of the 01PU positioning module are that it can be applied to speed or position control of stepper or servo drives, with a maximum pulse output of 200KPPS, and built-in multiple travel control modes. Through the DVP-PLC EH2 series host program using the FROM/TO instruction to read and write data in the module, the module has 54 CR registers, each register is 16 bits. 32-bit numeric parameters are composed of two consecutive CRs.

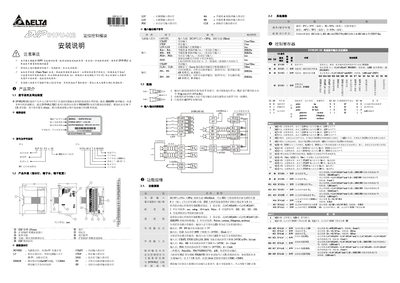

This guide provides step‑by‑step instructions for installing the Delta DVP01PU-H2 positioning control module, including wiring diagrams, terminal assignments, and safety precautions. It also explains how to configure the module parameters and communicate with a DVP‑PLC host.
The document covers power requirements, input/output signal specifications, pulse output modes, and error handling, helping users set up the module for accurate motion control in industrial automation applications. This manual is written in Chinese.
| Power input | DC 24 V, 100 mA consumption |
|---|---|
| Maximum pulse frequency | 200 kHz |
| Maximum pulse output rate | 200 KPPS |
The module requires a 24 V DC power supply and draws about 100 mA.
The module can output pulses up to 200 kHz.
It supports up to 200 KPPS pulse output.
