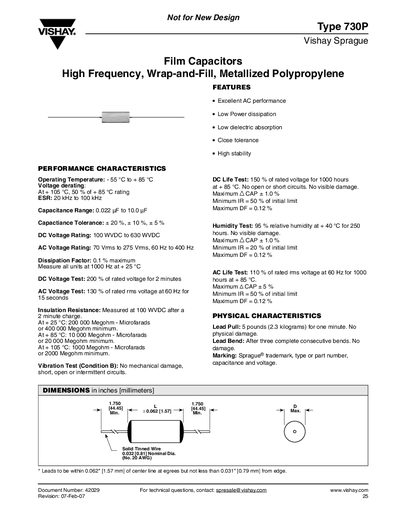

Vishay Sprague 730P series capacitors are high frequency, wrap-and-fill, metallized polypropylene film capacitors that offer excellent AC performance, low power dissipation, low dielectric absorption, close tolerances and high stability.
This document describes the Vishay 730P series of high‑frequency, wrap‑and‑fill metallized polypropylene film capacitors. It lists performance characteristics such as operating temperature, voltage ratings, capacitance range, ESR, dissipation factor, and insulation resistance.
Additional sections give physical characteristics, standard ratings, ordering information, and a legal disclaimer. The data includes dimensions, lead pull and bend specifications, and detailed part‑number tables for various capacitance values.
| Operating Temperature | -55 °C to +85 °C |
|---|---|
| DC Voltage Rating | 100 WVDC to 630 WVDC |
| Capacitance Range | 0.022 µF to 10.0 µF |
| ESR Frequency Range | 20 kHz to 100 kHz |
| Dissipation Factor | 0.1 % maximum |
| Insulation Resistance at +25 °C | 200 000 MΩ |
| Lead Pull Test | 5 lb (2.3 kg) for 1 min |
| Lead Bend Test | No damage after three bends |
The capacitors operate from –55 °C up to +85 °C.
The series is rated from 100 WVDC up to 630 WVDC.
Capacitance ranges from 0.022 µF to 10.0 µF.
