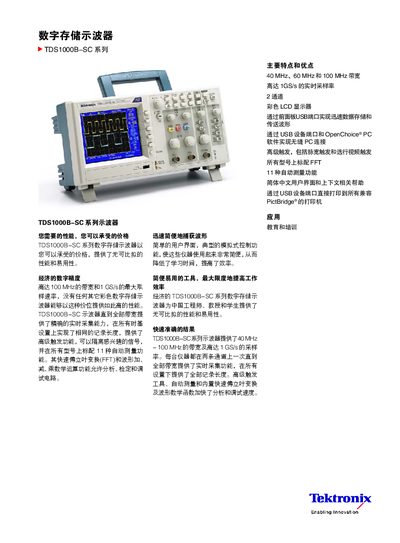

TDS1000B-SC Series Digital Storage Oscilloscope provides up to 100 MHz bandwidth and 1 GS/s maximum sampling rate, with precise real-time acquisition capability, same record length, advanced triggering function, 11 automatic measurement functions, fast Fourier transform (FFT) and waveform addition, subtraction, multiplication mathematical operation function, which can analyze, calibrate and debug the circuit.
The TDS1000B‑SC series offers affordable digital storage oscilloscopes with bandwidths of 40 MHz, 60 MHz, or 100 MHz and up to 1 GS/s real‑time sampling. Designed for Chinese‑speaking engineers, educators, and students, the instrument features a color LCD, intuitive analog‑style front‑panel controls, and built‑in FFT and waveform math functions to speed analysis and debugging.
The manual describes the instrument’s acquisition modes, trigger system, USB host/device ports, and optional accessories. It also lists environmental limits, safety certifications, ordering information, and service options, helping users set up, operate, and maintain the oscilloscope efficiently. This manual is written in Chinese.
| Bandwidth | 40 MHz, 60 MHz, 100 MHz (model dependent) |
|---|---|
| Maximum Sampling Rate | Up to 1 GS/s |
| Channels | 2 |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV – 5 V/div |
| Record Length | 2.5 k points per channel |
| USB Ports | 2 × USB 2.0 (host and device) |
| Display | QVGA color LCD |
| Operating Temperature | 0 °C – +50 °C |
The series is available with bandwidths of 40 MHz, 60 MHz, or 100 MHz depending on the model.
Each instrument provides two input channels.
Yes, all models include two USB 2.0 ports for host and device connections.
The oscilloscope operates from 0 °C up to +50 °C.
