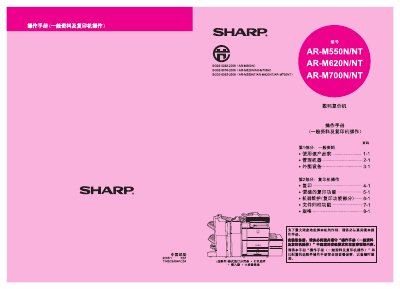

Sharp AR-M550N/AR-M620N/AR-M700N Digital Multifunction Copier User Manual
This manual covers all aspects of the Sharp AR-M550N, AR-M620N, and AR-M700N digital multifunction copiers, including safety precautions, installation requirements, and detailed operating procedures. It also describes the management software, fax expansion, network scanning, and document archiving functions.
Key sections include paper handling, toner replacement, error clearing, laser specifications, and peripheral device setup. The document provides step‑by‑step guidance for both routine use and service maintenance. This manual is written in Chinese.
Sharp AR-M620N specifications
| Laser wavelength | 785 nm ±10 nm -15 nm |
|---|---|
| Laser pulse width | 3.1 µs ± 3.1 ns |
| Laser output power | Maximum 0.8 mW |
| Main paper tray capacity | Up to 500 sheets of 80 g/m² paper |
| Hand‑feed box capacity | Up to 100 sheets (20 postcards) |
Source: Sharp AR-M550N/AR-M620N/AR-M700N Digital Multifunction Copier User Manual
All Sharp AR-M620N documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many sheets can the main paper tray hold?
The main paper tray can hold up to 500 sheets of standard 80 g/m² paper.
From: Sharp AR-M550N/AR-M620N/AR-M700N Digital Multifunction Copier User Manual
What is the maximum laser output power?
The laser’s maximum output power is 0.8 mW.
From: Sharp AR-M550N/AR-M620N/AR-M700N Digital Multifunction Copier User Manual
