Start here

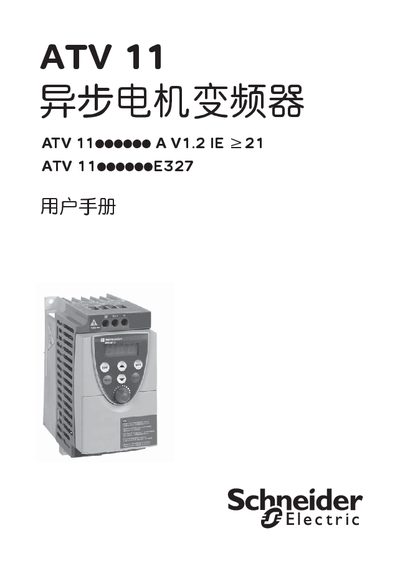

Schneider Electric ATV 11 Asynchronous Motor Frequency Converter User Manual
This manual provides step‑by‑step instructions for installing and configuring the Schneider Electric ATV 11 asynchronous motor frequency converter. It includes details on wiring terminals, power connections, preset speeds, and parameter adjustment menus.
The document also contains a comprehensive fault‑diagnosis section with causes and solutions, as well as specifications for dimensions, environmental limits, and mounting requirements. This manual is written in Chinese.
Schneider ATV 11 specifications
| Power range | 0.3 – 10 MW |
|---|---|
| Input voltage | 3.3 kV |
| MTBF | >100 000 h |
| PWM control levels | 17 levels |
| Rectifier type | 36‑pulse diode |
| Processor | 32‑bit |
| Maximum cabinet power density | 1.5 MVA per meter |
Source: Schneider Electric ATV 1100 Medium Voltage Inverter Product Leaflet
All Schneider ATV 11 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should I check if the converter does not start and no fault is displayed?
Verify that the run command input is correctly set for the selected control mode, and reset any inputs that may be holding the converter in stop.
From: Schneider Electric ATV 11 Asynchronous Motor Frequency Converter User Manual
What power range does the ATV 1100 support?
It supports applications from 0.3 MW up to 10 MW.
From: Schneider Electric ATV 1100 Medium Voltage Inverter Product Leaflet
What input voltage is required for the ATV 1100?
The device operates from a 3.3 kV three‑phase input.
From: Schneider Electric ATV 1100 Medium Voltage Inverter Product Leaflet
