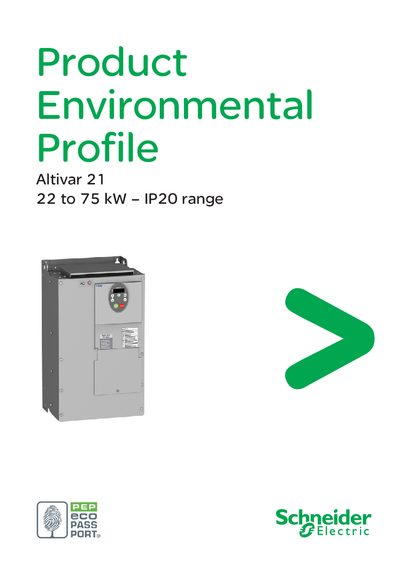

This document is about the environmental impact assessment of the Altivar 21 22 to 75 kW – IP20 range of products. It mainly introduces the materials used in the products, substance assessment, energy consumption and greenhouse gas emissions.
The Altivar 21 range controls and varies the speed of asynchronous electric motors for HVAC applications. It covers products from 0.75 to 75 kW, operating at 200‑480 V, with weights between 15 000 g and 55 000 g.
The environmental profile follows ISO 14040 and assesses raw material depletion, energy use, water use, global warming and other impacts. Manufacturing follows ISO 14001, packaging weight is 8 329 g, and the product achieves a 99 % waste‑sorting recovery rate with over 84 % material recovery at end‑of‑life.
| Power range | 0.75 to 75 kW |
|---|---|
| Voltage range | 200 to 480 V |
| Product weight | 15 000 g to 55 000 g |
| Power consumption | 626 W to 1945 W |
| RoHS compliance | No restricted substances |
| Manufacturing standard | ISO 14001 |
| Packaging weight | 8 329 g |
| Recovery rate | 99 % |
| End‑of‑life material recovery | >84 % |
| Estimated product life | 10 years |
It varies from 626 W to 1945 W.
Yes, it is designed in conformity with the RoHS directive and does not contain restricted substances.
The product use duration is estimated as 10 years.
The packaging weighs 8 329 g.
