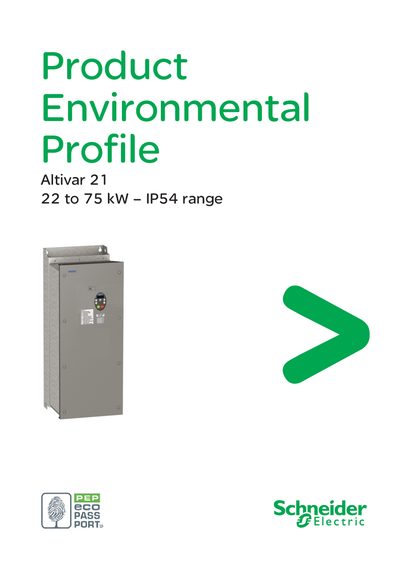

Altivar 21 22 to 75 kW - IP54 range Product Environmental Profile. The Altivar 21 range is used for control and rotation speed variation of an asynchronous electric motor, mainly in HVAC applications. The range includes products from 0.75 to 75 kW, operating at voltages from 200 to 480 V, single or three-phase. The representative product assessed is the Altivar 21 of rating 22 kW 400 V (ref ATV21WD22N4). The assessment was carried out conforming to ISO 14040 standard and considers the product's life cycle stages. The constituent materials include steel, aluminium alloys, brass, copper, tin, polyamide 66, polycarbonate, PBT, polyvinyl chloride, through-hole electronic components, epoxy resin printed circuit, others, ferrite, EPDM, and surface-mounted components.
The Altivar 21 range (22 to 75 kW, IP54) is a series of variable‑speed drives for asynchronous electric motors, primarily used in HVAC applications. This document presents the product environmental profile (PEP) for the range, using ISO 14040 life‑cycle assessment methodology.
The assessment details constituent materials, manufacturing and distribution impacts, power consumption (632 W to 1 953 W), end‑of‑life recovery potential (>89 %), and confirms RoHS compliance. The product life is estimated at 10 years and the use phase shows the greatest environmental impact.
| Power range | 0.75 kW to 75 kW |
|---|---|
| Voltage range | 200 V to 480 V, single or three‑phase |
| Weight (excluding packaging) | 29 168 g |
| Power consumption (22 kW unit) | 632 W |
| Estimated product life | 10 years |
The 22 kW Altivar 21 unit consumes 632 W.
Yes, the range is designed in conformity with the RoHS directive and does not contain lead, mercury, cadmium, hexavalent chromium, or the listed flame retardants.
The product use duration is estimated at 10 years.
The weight is 29 168 g (excluding packaging).
