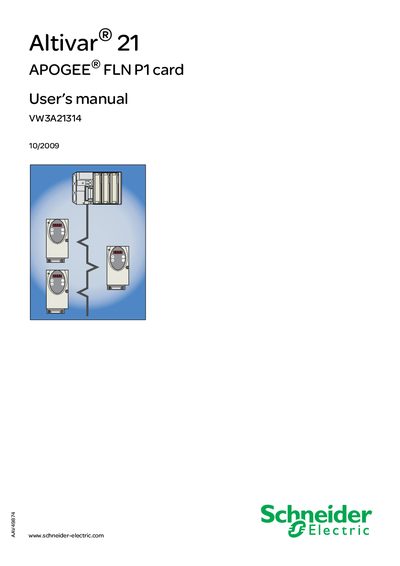

Schneider Electric Altivar 21 APOGEE FLN P1 Card User Manual

This is the User's manual for Altivar® 21 APOGEE® FLN P1 card

Brand: Altivar
Category: Other
Document type: User Manual
Language: English
Pages: 33
File format: PDF
File size: 1.3 MB
Published: 21 March, 2012
Updated: 30 September, 2023
Model: Altivar 21
MD5 checksum: F909C79E6FB0FFD63E4E6ADE489847A2
PDF: Schneider Electric Altivar 21 APOGEE FLN P1 Card User Manual PDF

About this manual

This manual provides safety instructions, hardware setup, and configuration details for the APOGEE® FLN P1 option card used with an Altivar 21 drive. It covers installation steps, wiring, RS‑485 communication, and the integrated HMI functions.

The document also describes network objects, predefined reports, and troubleshooting guidance, ensuring qualified personnel can safely install, operate, and maintain the card and drive system.

What's inside

Important Information
Before you begin
Introduction
Documentation structure
Hardware setup
Installing the card in the drive
Configuration
Network objects
Reports

Specifications

Required firmware version	V1.8E04 or later
Maximum DC bus voltage for safe service	less than 45 V
Number of predefined reports	6

Frequently asked questions

What firmware version is required for the APOGEE FLN P1 card?

The card is fully supported with firmware version V1.8E04 or later on the Altivar 21 drive.

How many predefined reports can the APOGEE FLN P1 card generate?

It can generate six predefined reports.
