Key facts
- Brand
- Schneider
- Model
- CVS100-630
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-21
Start here

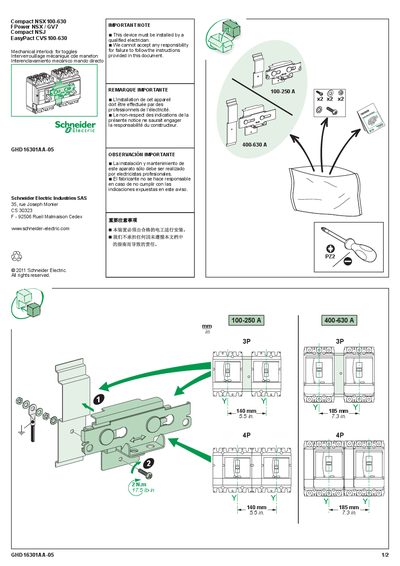

Schneider Electric Compact NSX100-630, FPower NSX/GV7, Compact NSJ, EasyPact CVS100-630 Installation Manual
Installation Guide 2 pages · 2 MB · EN
This document provides installation instructions and safety information for the Schneider Electric Compact NSX100-630 series and related models (FPower NSX/GV7, Compact NSJ, EasyPact CVS100-630). It includes mechanical interlock details and key electrical specifications.
Important safety notes are presented in several languages, emphasizing that only qualified electricians should perform installation and that Schneider Electric does not assume responsibility for non‑compliant work.
Schneider CVS100-630 specifications
| Rated current | 400‑630 A |
|---|---|
| Current range | 100‑250 A |
| Document code | GHD16301AA-05 |
All Schneider CVS100-630 documents by type
Installation Guide 2
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
Does Schneider Electric accept responsibility if the instructions are not followed?
No, Schneider Electric cannot accept any responsibility for failure to follow the instructions.
What is the current rating for the device?
The device is rated for 400‑630 A.
