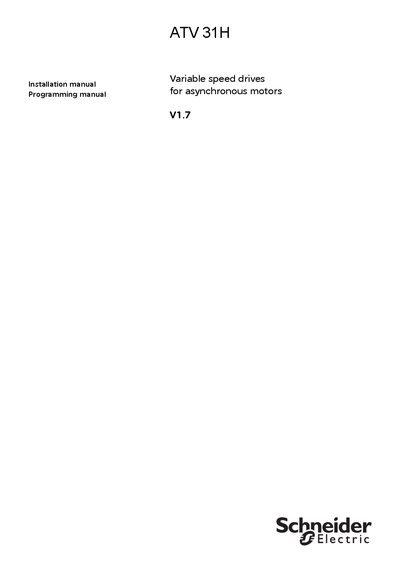

Schneider ATV 31H Variable Speed Drive Installation Guide
This guide provides step‑by‑step instructions for installing, mounting, and wiring the Schneider ATV 31H variable speed drive. It covers safety precautions, required clearances, and EMC compliance to ensure a reliable and safe installation.
The document also includes detailed technical data such as supply voltage ranges, switching frequency limits, dimension tables, weight specifications, and derating curves. Configuration and parameter settings, fault codes, and communication options are described for proper commissioning and troubleshooting.
Schneider ATV 31H specifications
| Single‑phase supply voltage | 200–240 V, 50/60 Hz |
|---|---|
| Three‑phase supply voltage | 200–240 V, 50/60 Hz |
| Switching frequency range | 2 kHz – 16 kHz |
| Maximum ambient temperature for ratings | 50 °C |
| Maximum current at 200 V (H018M2) | 4.8 A |
| Dimensions (Size 1) | 72 mm × 145 mm × 120 mm |
| Minimum front free space for cooling | 10 mm |
Source: Schneider ATV 31H Variable Speed Drive Installation Guide
All Schneider ATV 31H documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How much free space is required in front of the unit for proper cooling?
A minimum of 10 mm of free space in front of the unit is required to allow airflow.
From: Schneider ATV 31H Variable Speed Drive Installation Guide
What mounting configuration is recommended when IP20 protection is sufficient?
When IP20 protection is adequate, the protective cover on the top of the drive should be removed.
From: Schneider ATV 31H Variable Speed Drive Installation Guide
