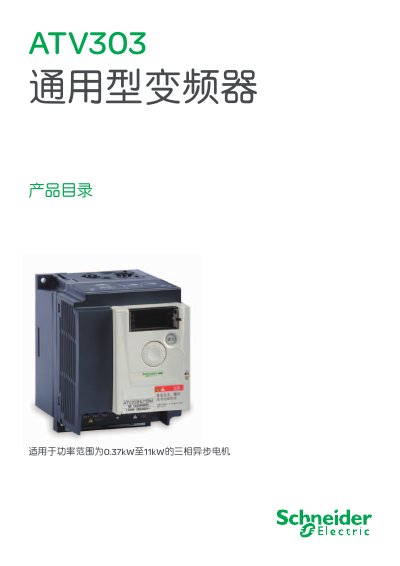

Schneider Electric ATV303 Variable Frequency Drive Manual
This manual introduces the ATV303 variable frequency drive, designed for three‑phase asynchronous motors with power ratings from 0.37 kW to 11 kW. It highlights the compact design, built‑in Modbus communication, and a wide operating temperature range of –10 °C to 55 °C.
Detailed sections cover selection guidelines, wiring diagrams, terminal labeling, control modes (V/F, vector, fan/pump), safety features, and maintenance procedures, helping users install and operate the drive efficiently in various industrial machines. This manual is written in Chinese.
Schneider ATV303 specifications
| Power range | 0.37 kW – 11 kW |
|---|---|
| Input voltage | 380 V – 460 V three‑phase |
| Output frequency range | 0.5 Hz – 400 Hz |
| Switching frequency (rated) | 4 kHz |
| Over‑current capability | 150 % of rated current for 60 s |
| Instantaneous torque | 170 %–200 % of rated torque |
| Control modes | V/F, vector (sensorless), fan/pump (Kn2) |
| Built‑in communication | Modbus (optional CANopen, Profibus, etc.) |
| Operating temperature range | -10 °C to 55 °C |
Source: Schneider Electric ATV303 Variable Frequency Drive Manual
