Key facts
- Brand
- Samsung
- Model
- XQB50-20
- Category
- Washing Machines
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-04-11
Start here

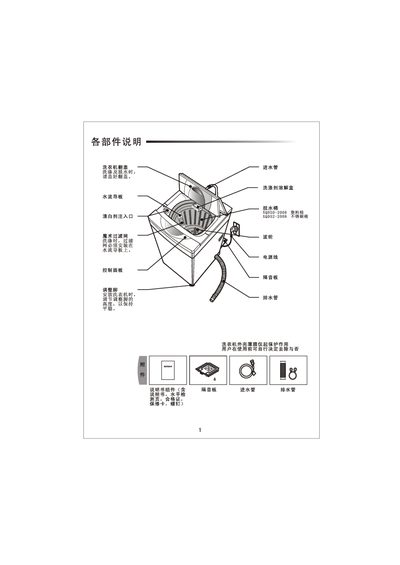

Samsung XQB50-2008/XQB52-2008 Washing Machine User Manual
This manual provides detailed safety guidelines, installation steps, and operating instructions for Samsung XQB50-2008 and XQB52-2008 washing machines. It covers component descriptions, power‑cord safety, water‑inlet and drain‑pipe connections, and recommended placement to ensure stable and quiet operation.
The document also explains all washing programs—including standard, quick, child, wool, and reservation wash—along with manual functions, cleaning methods, troubleshooting tips, and full product specifications such as capacity, power consumption, dimensions, and spin speeds. This manual is written in Chinese.
Samsung XQB50-20 specifications
| Rated power consumption | 3308 W |
|---|---|
| Dimensions (W×L×H) | 520 mm × 530 mm × 870 mm |
| Product weight | 30 kg |
| Standard water consumption | 150 L per cycle |
| Water pressure range | 0.03 MPa – 1 MPa |
| Wash drum speed | 145 rpm |
| Spin speed | 760 rpm |
| Washing method | Impeller (波轮式) |
Source: Samsung XQB50-2008/XQB52-2008 Washing Machine User Manual
All Samsung XQB50-20 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the power cord be safely disconnected?
Hold the plug firmly and pull the plug out of the socket; do not pull on the cord itself and avoid placing heavy objects on the cord.
From: samsung XQB50-20/XQB52-20automate washing machine Manual
What is the correct way to install the drain pipe?
Insert the drain pipe into the drain hole until the base, secure it with the connecting ring, adjust its length and bend as needed, and ensure no leaks.
From: samsung XQB50-20/XQB52-20automate washing machine Manual
