Key facts
- Brand
- Samsung
- Model
- SP61L2HX
- Category
- Television
- Industry
- Appliances
- Documents
- 2
- Languages
- JA · ZH
- Last added
- 2012-03-15
Start here

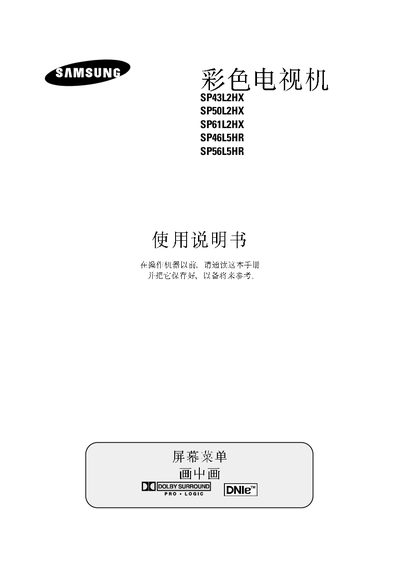

Samsung SP43L2HX SP50L2HX SP61L2HX SP46L5HR SP56L5HR Color Television User Manual
This manual provides safety guidelines, installation steps, and operating instructions for several Samsung color television models (SP43L2HX, SP50L2HX, SP61L2HX, SP46L5HR, SP56L5HR). It includes warnings, proper handling of the unit, and detailed procedures for connecting external devices and adjusting picture and sound settings.
Key sections cover lamp replacement, panel installation, audio and video configuration, remote‑control usage, and troubleshooting tips. The document is written in Japanese with some Chinese characters and is intended for end‑users and service technicians.
Samsung SP61L2HX specifications
| Speaker output power | 15 W |
|---|---|
| RS‑232 interface (service) | Available |
| DVI input connector | 24‑pin |
| Number of S‑VHS inputs | 2 |
Source: Samsung SP43L2HX / SP50L2HX / SP61L2HX Television User Manual
All Samsung SP61L2HX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which input ports are available on the TV?
The TV provides S‑VHS (two inputs), DVI, RS‑232 for service, and audio/video ports such as AV1‑AV3 and HDMI‑compatible connections.
From: Samsung SP43L2HX / SP50L2HX / SP61L2HX Television User Manual
Does the TV support automatic volume control?
Yes, the manual lists an automatic volume control feature under the operation functions.
From: Samsung SP43L2HX / SP50L2HX / SP61L2HX Television User Manual
