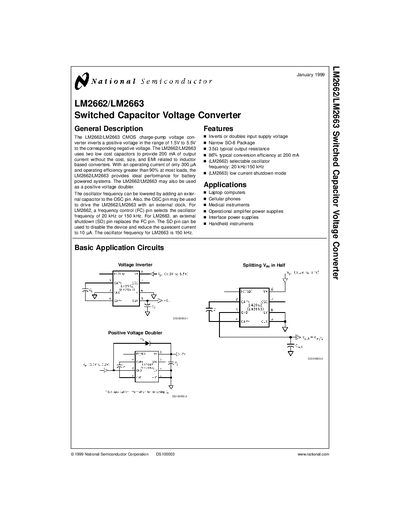

National Semiconductor LM2662/LM2663 Switched Capacitor Voltage Converter Datasheet
The LM2662 and LM2663 are CMOS charge‑pump voltage converters that invert or double an input voltage from 1.5 V to 5.5 V, delivering up to 200 mA of output current with high efficiency. They use two low‑cost external capacitors and offer selectable oscillator frequencies and a shutdown mode for ultra‑low quiescent current.
The document provides absolute maximum ratings, electrical characteristics, typical performance curves, application circuits, capacitor selection guidance, and physical dimensions for the SO‑8 package (LM2662M/LM2663M).
National Semiconductor LM2662 specifications
| Input voltage range | 1.5 V to 5.5 V |
|---|---|
| Maximum output current | 200 mA |
| Typical efficiency | >90 % at most loads |
| Quiescent supply current (LM2662) | 300 pA |
| Shutdown quiescent current (LM2663) | 10 pA |
| Oscillator frequency (LM2662) | 20 kHz or 150 kHz (selected by FC pin) |
| Typical output resistance | 3.5 Ω |
Source: National Semiconductor LM2662/LM2663 Switched Capacitor Voltage Converter Datasheet
All National Semiconductor LM2662 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What input voltage range does the LM2662/LM2663 support?
The converters operate with an input voltage from 1.5 V to 5.5 V.
From: National Semiconductor LM2662/LM2663 Switched Capacitor Voltage Converter Datasheet
What is the maximum output current of the LM2662/LM2663?
Both devices can deliver up to 200 mA of output current.
From: National Semiconductor LM2662/LM2663 Switched Capacitor Voltage Converter Datasheet
What input voltage range does the LM2662/LM2663 support?
It operates with an input voltage from 1.5 V up to 5.5 V.
From: National Semiconductor LM2662/LM2663 Switched Capacitor Voltage Converter Datasheet
What is the maximum output current of the device?
The converter can deliver up to 200 mA of output current.
From: National Semiconductor LM2662/LM2663 Switched Capacitor Voltage Converter Datasheet
