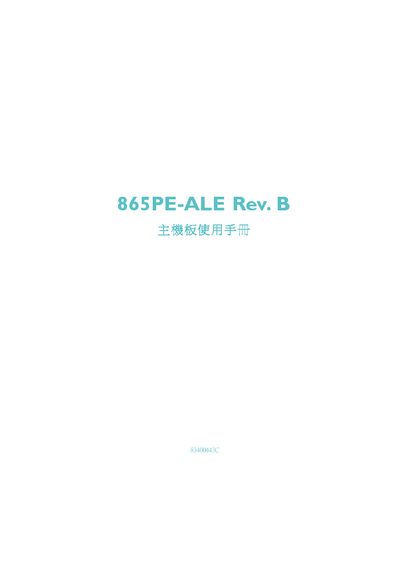

Intel 865PE-ALE Rev. B Mainboard User Manual

865PE-ALE Rev. B Motherboard User Manual

Brand: 865PE-ALE
Category: Board
Document type: User Manual
Language: Chinese
Pages: 110
File format: PDF
File size: 2.1 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: 865PE-ALE
MD5 checksum: EF0F0D6F4FE190095171437F11D63BBD
PDF: Intel 865PE-ALE Rev. B Mainboard User Manual PDF

About this manual

This manual covers the hardware layout, BIOS configuration options, and power‑supply requirements for the Intel 865PE‑ALE motherboard. It includes detailed sections on CPU support, memory installation, and system health monitoring.

Safety notices, warranty conditions, and FCC compliance information are also provided, along with troubleshooting steps for common issues such as radio interference and BIOS mis‑configuration. This manual is written in Chinese.

What's inside

Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail Safe Defaults
Load Optimized Defaults

Specifications

CPU socket	Socket 478
Supported CPUs	Intel Pentium 4 (Prescott, Northwood) up to 3.4 GHz+
Front Side Bus speeds	400 MHz, 533 MHz, 800 MHz
Supported memory speeds	PC2100/PC2700/PC3200 (DDR266/DDR333/DDR400)

Frequently asked questions

What should I do if the equipment causes radio interference?

Try relocating the receiver, increase the separation between equipment and receiver, connect the equipment to a different circuit, or consult a qualified radio‑frequency technician.
