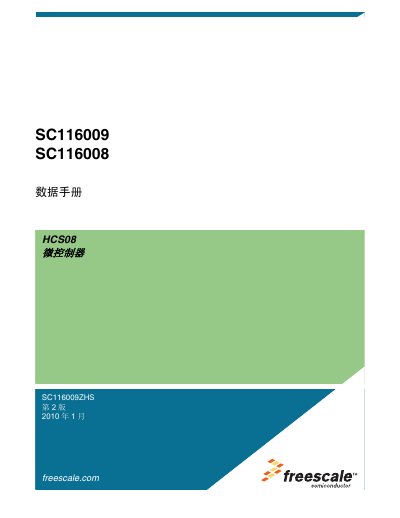

Freescale SC116009 Series Microcontroller Data Sheet
This document is the Chinese version of the data sheet for the Freescale SC116009 Series microcontrollers, which belong to the HCS08 family. It provides comprehensive technical information regarding the CPU, memory, clock sources, system protection, peripherals, and I/O capabilities. The document also covers operating modes, reset mechanisms, and specific peripheral modules such as the ADC, SCI, SPI, and timers. This manual is written in Chinese.
Read onlineFreescale SC116009 specifications
| CPU frequency | 40 MHz |
|---|---|
| Internal bus speed | 20 MHz |
| Flash memory size | up to 60 KB |
| RAM size | up to 2 KB |
| ADC channels | up to 16, 8‑bit |
| General‑purpose I/O pins | up to 54 |
| Package options | 64‑pin LQFP, 44‑pin LQFP |
All Freescale SC116009 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency of the SC116009 CPU?
The microcontroller features an HCS08 central processor that operates at a maximum speed of 40 MHz.
How much on-chip Flash memory is available in the SC116009?
The device includes up to 60 KB of on-chip Flash memory with security options.
What is the maximum flash memory size of the SC116009 series?
The device provides up to 60 KB of on‑chip flash memory.
How many general‑purpose I/O pins does the SC116009 have?
It offers up to 54 configurable I/O pins.
What is the maximum flash memory size for the SC116009/SC116008?
The devices provide up to about 60 KB of flash memory.
How many general‑purpose I/O pins are available?
Up to 54 general‑purpose I/O pins are supported.
