Start here

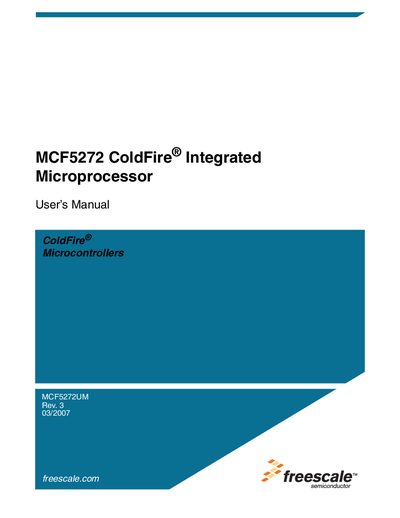

Freescale MCF5272 ColdFire Integrated Microprocessor User Manual
The manual describes the MCF5272 ColdFire® Integrated Microprocessor, covering the core architecture, hardware multiply‑accumulate unit, local memory, debug support, and system integration module. It lists all peripheral modules such as the SDRAM controller, DMA controller, Ethernet, USB, QSPI, timers, UARTs, GPIO, and PWM.
Additional sections detail signal descriptions, bus operation, JTAG test access, mechanical data, electrical characteristics, and appendices with memory maps and buffering information. Contact information for Freescale technical support is provided at the end of the document.
Freescale MCF5272 specifications
| Processor family | ColdFire® Integrated Microprocessor |
|---|---|
| Model number | MCF5272 |
| Publication date | 03/2007 |
Source: Freescale MCF5272 ColdFire Integrated Microprocessor User Manual
All Freescale MCF5272 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Where can I get technical support for the MCF5272?
Contact Freescale support via email at [email protected] or the phone numbers listed in the document.
From: Freescale MCF5272 ColdFire Integrated Microprocessor User Manual
What is the document number for this manual?
The document number is MCF5272UM.
From: Freescale MCF5272 ColdFire Integrated Microprocessor User Manual
What is the revision and date of this manual?
The manual is revision 2.1 and was published in February 2006.
