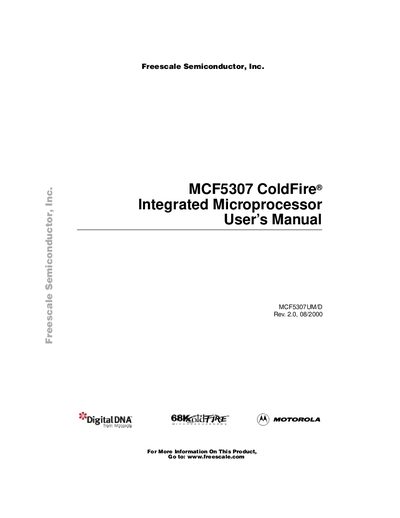

Freescale MCF5307 User Manual
This manual describes the MCF5307 ColdFire® integrated microprocessor, covering its core architecture, system integration module, peripheral module, and hardware interface. It includes sections on the processor core, MAC unit, PLL, memory controllers, DMA, UART, timers, and I/O ports.
The document also contains detailed information on electrical specifications, JTAG test access, memory map, cache operation, debug support, and programming models. It serves as a reference for developers designing hardware or software that incorporates the MCF5307.
Freescale MCF5307 specifications
| Unified cache size | 8 Kbyte |
|---|---|
| On‑chip SRAM size | 4 Kbyte |
| Core frequency | 90 MHz |
| DMA channels | 4 |
| UART count | 2 |
| General‑purpose timers | 2 |
| Maximum DRAM capacity | 512 Mbytes |
| Package type | 208‑pin plastic OFP |
| Operating temperature range | 0°‑70°C |
| Process technology | 0.35 µm CMOS |
All Freescale MCF5307 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the core frequency of the MCF5307PB/D processor?
The processor runs at 90 MHz, delivering 75 Dhrystone 2.1 MIPS.
How much on‑chip cache does the MCF5307 have?
It includes an 8‑Kbyte unified cache.
Where can I find more information about the MCF5307?
More information is available at the Freescale website: www.freescale.com.
What trademark is associated with the ColdFire core?
ColdFire is a registered trademark of Motorola, Inc.
