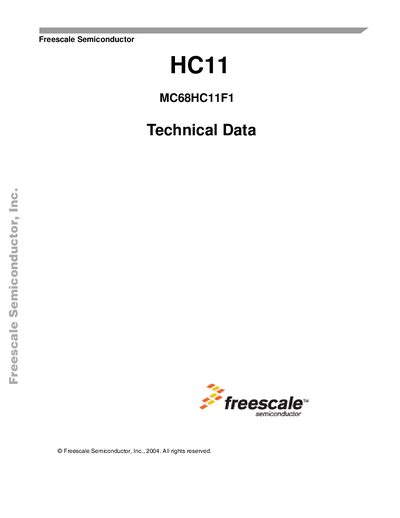

Freescale MC68HC11F1 Microcontroller User Manual
This manual describes the MC68HC11F1 8‑bit microcontroller, covering its CPU core, on‑chip memory, operating modes, reset and interrupt handling, and the various serial interfaces. It also includes electrical characteristics, mechanical data, and ordering information.
The document lists development tools such as the MC68HC11F1 Evaluation System, the Modular Development System (MMDS11), and provides specifications for emulation memory, trace buffers, breakpoint resources, and communication interfaces.
Freescale HC11 specifications
| Monitor map size | 64 Kbyte monitor map with 16 Kbytes monitor EPROM |
|---|---|
| Emulation RAM | 64 Kbytes of emulation RAM |
| Real‑time trace buffer | 8 Kbyte × 64 entries |
| Time‑tag resolution | 16‑bit or 24‑bit time tag |
| Oscillator clock sources | Six software‑selectable sources |
| Instruction breakpoints | 64 possible hardware instruction breakpoints |
| Data breakpoints | Four hardware data breakpoints |
| RS‑232 baud rate | Up to 57.6 Kbaud |
| Physical dimensions | 15.38" × 10.19" × 2.75" (390.6 mm × 258.8 mm × 69.9 mm) |
All Freescale HC11 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What development tools are provided for the MC68HC11F1?
The manual lists MC68HC11F1 Development Tools, the MC68HC11EVS Evaluation System, and the M68MMDS11 Modular Development System as supported tools.
How much emulation memory does the MC68HC11F1 EVS contain?
The evaluation system provides 64 Kbytes of emulation memory.
