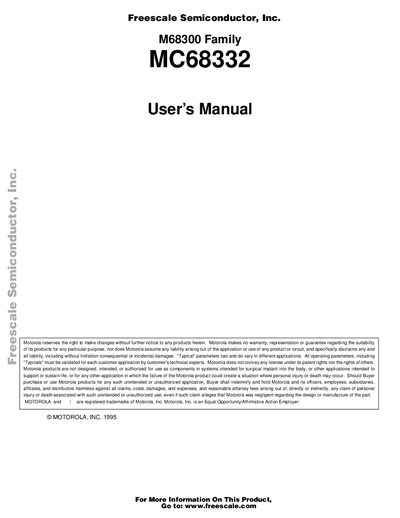

FREESCALE SEMICONDUCTOR M68300 Family MC68332 User Manual
This manual introduces the MC68332 microcontroller, part of the M68300 family, and outlines its features, system integration module, CPU core, time processor unit, and queued serial module. It includes tables of contents, register maps, pin assignments, and detailed descriptions of each functional block.
The document also contains extensive information on reset handling, interrupt processing, bus operation, and peripheral interfaces such as SCI and QSPI. Legal notices and warranty disclaimers are provided, and users are directed to Freescale’s website for additional resources.
Freescale MC68332 specifications
| Architecture | 32-bit |
|---|---|
| CPU | CPU32 |
| Maximum system clock speed | 20.97 MHz |
| Reference frequency | 32.768 kHz |
| Static RAM | 2 Kbytes |
| TPU channels | 16 independent, programmable channels and pins |
| Package type | 132-pin PQFP |
| Package type | 144-pin QFP |
Source: Motorola MC68332 32-Bit Modular Microcontroller Technical Summary
All Freescale MC68332 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Where can I find more information about the MC68332 product?
More information is available at www.freescale.com.
From: FREESCALE SEMICONDUCTOR M68300 Family MC68332 User Manual
What CPU does the MC68332 incorporate?
It incorporates a 32-bit CPU (CPU32).
From: Motorola MC68332 32-Bit Modular Microcontroller Technical Summary
What is the maximum system clock speed?
The maximum system clock speed is 20.97 MHz.
From: Motorola MC68332 32-Bit Modular Microcontroller Technical Summary
