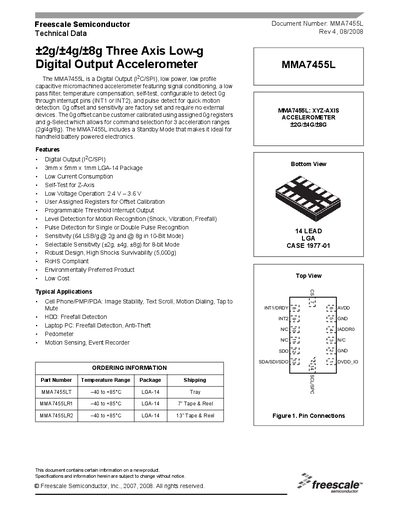

Freescale MMA7455L Accelerometer Datasheet
The MMA7455L is a low‑power, low‑profile, capacitive micromachined accelerometer with digital I²C/SPI output. It offers selectable ranges of ±2 g, ±4 g and ±8 g, built‑in self‑test, level‑detection for motion, pulse detection for single or double pulses, and a standby mode suited for battery‑powered handheld devices. The device is supplied in a 14‑lead LGA‑14 package and includes on‑chip temperature compensation and ESD protection.
Typical applications include cell‑phone image stabilization, hard‑disk free‑fall detection, laptop anti‑theft, pedometers and other motion‑sensing systems. The datasheet provides detailed pin descriptions, maximum ratings, operating characteristics, detection function parameters, and mechanical package dimensions for PCB designers.
Freescale MMA7455L specifications
| Maximum Shock Survivability | 5,000 g |
|---|---|
| Analog Supply Voltage | -0.3 V to +3.6 V |
| Operating Temperature Range | -40 °C to 85 °C |
| Maximum Acceleration (all axes) | 5,000 g |
All Freescale MMA7455L documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the analog supply voltage range for the MMA7455L?
The analog supply voltage (AVdd) can be between –0.3 V and +3.6 V.
What is the maximum shock survivability of the device?
The accelerometer can survive shocks up to 5,000 g.
What is the operating temperature range of the MMA7455L?
The device operates from –40 °C to 85 °C.
How can the MMA7455L be placed into standby mode?
Set the MODE bits in the mode control register to 00 to select Standby Mode.
