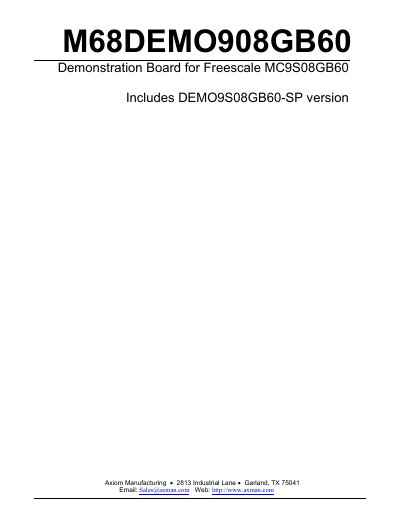

FREESCALE SEMICONDUCTOR M68DEMO908GB60 Demonstration Board for Freescale MC9S08GB60 Includes DEMO9S08GB60-SP version
The M68DEMO908GB60 is an evaluation and demonstration board for the Freescale MC9S08GB60 microcontroller. It includes a regulated 3.3 V supply, AA‑battery holder, DB‑9 serial cable, LEDs, push‑switches and jumpers that let users quickly develop and test applications using the on‑board debug monitor and sample programs.
The manual covers safety cautions, board features, power‑supply selection, jumper configurations, and how to select and run the four demo programs (Stop‑3 low‑power, software‑paced loop, ATD/timer, and debug monitor). It also describes the serial debug monitor operation, I/O port connectors, and the BDM debug port for advanced development.
Freescale MC9S08GB60 specifications
| Board Size | 4" x 4.5" |
|---|---|
| Power Input | +6 to +12 VDC (9 VDC typical) |
| Current Consumption | 30 mA @ 9 VDC |
| Flash Memory | 60 KB |
| RAM | 4 KB |
| I/O Lines | 56 I/O lines (64 pins) |
| ADC Channels | 8‑channel 10‑bit A/D |
| Serial Ports | 2 × SCI ports |
| Regulated Voltage | +3.3 V |
All Freescale MC9S08GB60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I select which demo program runs when the board powers up?
Demo programs are selected by holding down one of the three push‑switches (SW2, SW3, or SW4) while applying power; if no switch is held, the low‑power Stop‑3 demo runs by default.
What power supplies can be used with the M68DEMO908GB60 board?
The board accepts an external supply of +6 V to +12 VDC (9 VDC typical) via the power jack, or it can run from two AA batteries providing about 3 V.
What is the revision number of this data sheet?
The data sheet is revision 2.3, dated December 2004.
From: Freescale MC9S08GB60/MC9S08GB32/MC9S08GT60/MC9S08GT32/MC9S08GT16 HCS08 Microcontrollers Data Sheet
Which package type is used for the MC9S08GT16 device?
The MC9S08GT16 is offered in a 48‑pin QFN package.
From: Freescale MC9S08GB60/MC9S08GB32/MC9S08GT60/MC9S08GT32/MC9S08GT16 HCS08 Microcontrollers Data Sheet
