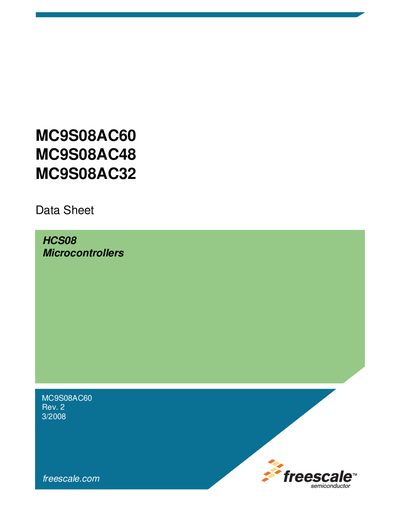

FREESCALE SEMICONDUCTOR MC9S08AC60 MC9S08AC48 MC9S08AC32 Data Sheet MC9S08AC60 Manual
The MC9S08AC60 is an 8‑bit HCS08 microcontroller featuring a 40 MHz CPU core, 20 MHz internal bus, up to 60 KB of flash memory and 2 KB of RAM. It supports a rich set of peripherals including up to 16‑channel 10‑bit ADC, two SCI modules, SPI, I²C, timers, PWM, keyboard interrupt and CRC hardware.
The device is offered in several package types such as 64‑pin QFP, 48‑pin QFN and 32‑pin LQFP. The data sheet provides detailed electrical characteristics, timing specifications, pin‑out diagrams and ordering information for designers.
Freescale MC9S08AC60 specifications
| CPU frequency | 40 MHz |
|---|---|
| Internal bus frequency | 20 MHz |
| Flash memory | Up to 60 KB |
| RAM | Up to 2 KB |
| ADC channels | Up to 16 channels, 10‑bit |
| General‑purpose I/O pins | Up to 54 pins |
Source: FREESCALE SEMICONDUCTOR MC9S08AC60 MC9S08AC48 MC9S08AC32 Data Sheet MC9S08AC60 Manual
All Freescale MC9S08AC60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum flash memory size of the MC9S08AC60?
The device provides up to 60 KB of on‑chip flash memory.
From: FREESCALE SEMICONDUCTOR MC9S08AC60 MC9S08AC48 MC9S08AC32 Data Sheet MC9S08AC60 Manual
What timer and PWM capabilities does the MC9S08AC60 offer?
The microcontroller has up to three 16‑bit timer/PWM modules with selectable input capture, output compare and edge‑aligned PWM.
From: FREESCALE SEMICONDUCTOR MC9S08AC60 MC9S08AC48 MC9S08AC32 Data Sheet MC9S08AC60 Manual
What applications are targeted by the MC9S08AC series?
The series is aimed at general industrial use, motor control, building control, HVAC systems, and home appliances such as dishwashers, washing machines, dryers, and refrigerators.
From: Freescale MC9S08AC60/48/32 8‑bit Microcontroller Datasheet
How many GPIO pins does the MC9S08AC60 provide?
It provides up to 56 programmable GPIO pins.
From: Freescale MC9S08AC60/48/32 8‑bit Microcontroller Datasheet
