Start here

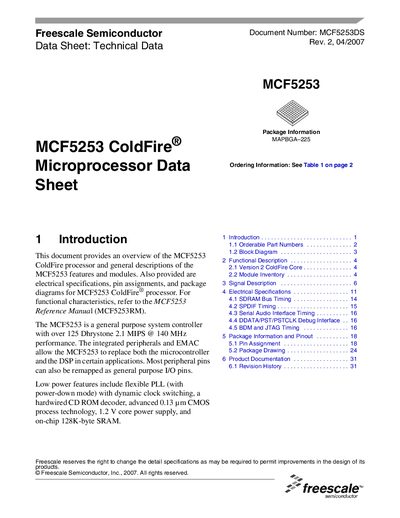

Freescale MCF5253 ColdFire Processor Data Sheet
The Freescale MCF5253 ColdFire processor is a general‑purpose system controller offering over 125 Dhrystone 2.1 MIPS at 140 MHz. It integrates peripherals such as EMAC, flexible PLL, on‑chip 128‑KB SRAM, and a 1.2 V core power supply, allowing it to replace microcontrollers and DSPs in many applications.
The data sheet provides detailed electrical specifications, pin assignments, package information (MAPBGA‑225), and signal descriptions. It also lists orderable part numbers, block diagrams, and references to related documentation such as the reference manual and product brief.
Freescale MCF5253 specifications
| Performance (Dhrystone) | over 125 Dhrystone 2.1 MIPS @ 140 MHz |
|---|---|
| Package Type | MAPBGA‑225 |
| On‑chip SRAM | 128 KB |
| Core Power Supply | 1.2 V |
| Operating Temperature | -20 °C to +70 °C |
All Freescale MCF5253 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which package does the MCF5253 use?
It is supplied in a MAPBGA‑225 package.
Where can I find software drivers for the MCF5253?
Software drivers and applications are available at http://www.freescale.com/coldfire.
What package does the MCF5253 use?
It is supplied in a MAPBGA‑225 package.
How much on‑chip SRAM does the processor contain?
The device includes 128 KB of on‑chip SRAM.
