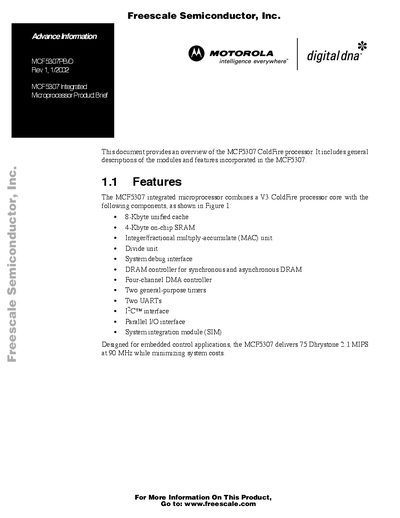

The MCF5307 is an integrated microprocessor that combines a V3 ColdFire processor core with various components and features. It is designed for embedded control applications, delivering high performance and low system costs.
The MCF5307PB/D is a ColdFire V3 microprocessor core designed for embedded control applications. It delivers 75 Dhrystone 2.1 MIPS at 90 MHz while offering a low‑cost, high‑performance solution.
The device integrates an 8‑Kbyte unified cache, 4‑Kbyte on‑chip SRAM, a four‑channel DMA controller, two UARTs, two general‑purpose timers, a DRAM controller supporting up to 512 Mbytes, and a system integration module with programmable chip selects and watchdog timer.
| Unified cache size | 8 Kbyte |
|---|---|
| On‑chip SRAM size | 4 Kbyte |
| Core frequency | 90 MHz |
| DMA channels | 4 |
| UART count | 2 |
| General‑purpose timers | 2 |
| Maximum DRAM capacity | 512 Mbytes |
| Package type | 208‑pin plastic OFP |
| Operating temperature range | 0°‑70°C |
| Process technology | 0.35 µm CMOS |
The processor runs at 90 MHz, delivering 75 Dhrystone 2.1 MIPS.
It includes an 8‑Kbyte unified cache.
The device provides a four‑channel DMA controller.
The processor contains two full‑duplex UARTs with programmable clocks and modem control signals (CTS, RTS).
