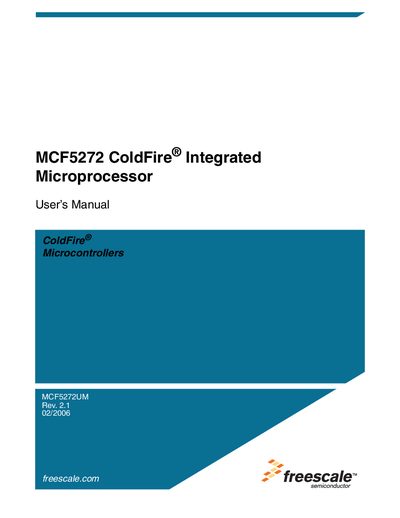

Freescale MCF5272 Microprocessor User Manual

About this manual

The manual describes the ColdFire® integrated microprocessor MCF5272, covering its core architecture, hardware multiply/accumulate unit, local memory, system integration module, and peripheral modules such as Ethernet, USB, UART, PWM, and QSPI. It includes sections on signal descriptions, bus operation, electrical characteristics, and mechanical data.

Programming models for both user and supervisor modes, instruction set summaries, timing tables, and debugging support (including BDM and real‑time trace) are presented. Appendices contain memory maps, buffering guidelines, and a comprehensive index.

What's inside

• Overview
• ColdFire Core
• Hardware Multiply/Accumulate (MAC) Unit
• Local Memory
• Debug Support
• System Integration Module (SIM)
• Programming Model
• Instruction Set Summary
• Electrical Characteristics
• Appendices

Specifications

Frequently asked questions

What is the revision and date of this manual?

The manual is revision 2.1 and was published in February 2006.
