This datasheet provides detailed information about the M68HC11E family of microcontrollers, including pinouts, features, and electrical characteristics

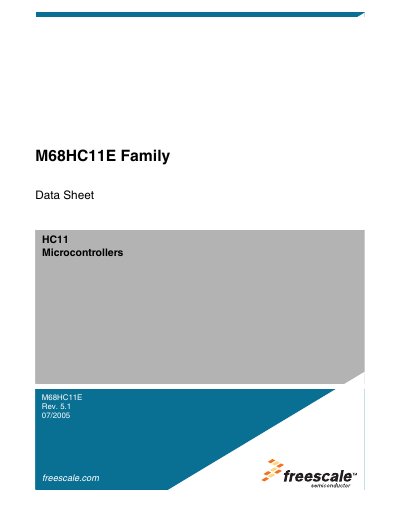

The M68HC11E Family Data Sheet describes the features, architecture, and operation of Freescale's HC11 microcontroller family. It includes detailed sections on general description, operating modes, on‑chip memory, analog‑to‑digital conversion, CPU registers, resets, interrupts, I/O ports, serial interfaces, timing systems, and electrical characteristics.
Additional chapters cover ordering information, mechanical specifications, and programming procedures using the PCbug11 tool and EVBU hardware. The document serves as a reference for designers and developers implementing the M68HC11E devices in embedded applications.
