DELL PRO3X Manuals

ManualLib has 6 documents for the DELL PRO3X (Other device): 6 user manuals. Every file can be read online or downloaded as a PDF for free.

User Manual 6

Key facts

Brand
DELL
Model
PRO3X
Category
Other device
Documents
6
Languages
ZH · FR · ES · EN
Last added
2023-11-25

Start here

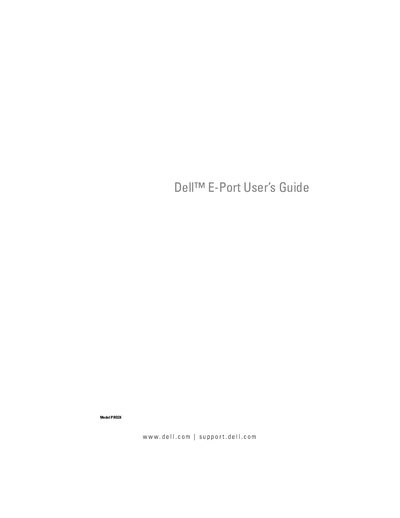

Dell PRO3X E-Port User's Guide

Dell PRO3X E-Port User's Guide

User Manual 22 pages · 763 KB · ZH

This guide covers the Dell PRO3X E-Port, a docking station that supports Dell E-series laptops and is not compatible with previous laptop series. It describes the E-Port connectors, setup steps, docking and undocking, security, power states, and use with dual displays.

The guide also lists physical, connector, power, and environmental specifications, plus a glossary and information on where to find additional Dell documentation. This manual is written in Chinese.

Read online

DELL PRO3X specifications

Height70 mm (2.76 in)
Thickness180 mm (7.09 in)
Width210 mm (8.27 in)
USB connectorsSix USB connectors: five 4-pin USB 2.0 compatible connectors and one USB or eSATA connector
Audio connectorsHeadphone/speaker and microphone
NetworkOne RJ-45 port; 10/100/1000 GB Ethernet
VideoVGA, DVI, and DisplayPort (HDMI with hardware protection)
Operating temperature0°C (min), 25°C (typical), 35°C (max)
Operating temperature change rate0°C/hr to 10°C/hr
Operating humidity10% to 80% (non-condensing)
Operating altitude0 m (0 ft) to 3048 m (10,000 ft)
Non-operating temperature-40°C to 65°C
Non-operating temperature change rate0°C/hr to 20°C/hr
Non-operating humidity5% to 95% (non-condensing)
Non-operating altitude0 m (0 ft) to 10670 m (35,000 ft)

Source: Dell PRO3X E-Port User's Guide

All DELL PRO3X documents by type

User Manual 6

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

Which Dell laptops work with the E-Port?

It supports Dell E-series laptops and is not compatible with any previous laptop series.

From: Dell PRO3X E-Port User's Guide

Which AC adapter should I use with the E-Port?

Use the Dell AC adapter included with the E-Port; using another adapter may damage the E-Port or laptop.

From: Dell PRO3X E-Port User's Guide

Which laptops work with the Dell E-Port PRO3X?

It supports Dell E-Family laptops, but not earlier series.

From: Dell E-Port PRO3X Docking Station User's Guide

How many USB 2.0 devices can connect to the E-Port?

Up to five USB 2.0 devices can be connected.

From: Dell E-Port PRO3X Docking Station User's Guide

Which laptops are compatible with the Dell E-Port?

It is compatible with Dell E-Family laptops, but not with previous laptop series.

From: Dell E-Port PRO3X User's Guide

What power adapter should be used with the E-Port?

Always use the Dell AC adapter supplied with the E-Port to avoid damaging the device or laptop.

From: Dell E-Port PRO3X User's Guide
