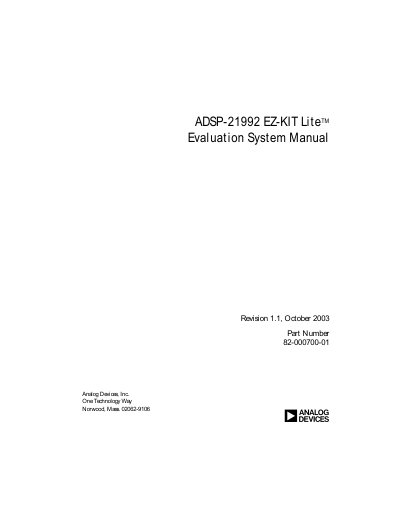

Analog Devices ADSP-21992 EZ-KIT Lite Evaluation System Manual
This manual is intended for engineers and developers who have purchased the ADSP-21992 EZ‑KIT Lite evaluation system. It explains how to configure the PC, install VisualDSP++ and the EZ‑KIT Lite drivers, and set up the hardware for use with the ADSP-21992 DSP.
The document includes detailed hardware reference information such as power‑supply specifications, connector pin‑outs, jumper settings, and interface descriptions (SPI, CAN, UART, PWM, etc.), as well as warranty and licensing details.
Analog Devices ADSP-21992 specifications
| Core Performance | Up to 160 MIPS sustained performance |
|---|---|
| ADC Channels | 8-channel |
| ADC Resolution | 14-bit |
| PWM Outputs | Dual 16-bit auxiliary PWM outputs |
Source: Analog Devices ADSP-21992 Mixed-Signal DSP Controller Datasheet
All Analog Devices ADSP-21992 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sustained performance of the ADSP-21992?
The ADSP-21992 can achieve up to 160 MIPS sustained performance.
From: Analog Devices ADSP-21992 Mixed-Signal DSP Controller Datasheet
What is the resolution of the integrated ADC?
The integrated analog-to-digital converter system has a resolution of 14-bit.
From: Analog Devices ADSP-21992 Mixed-Signal DSP Controller Datasheet
