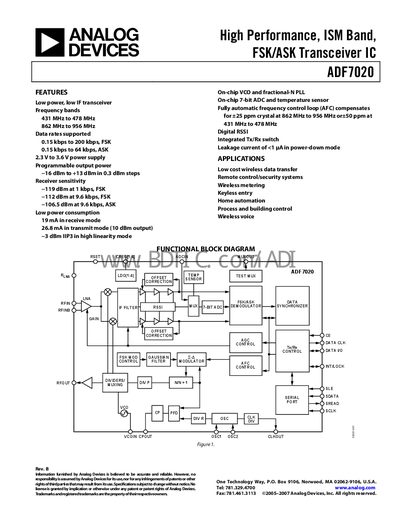

ADF7020 is a high-performance, ISM band, FSK/ASK transceiver IC. It features low power, low IF, programmable output power, high sensitivity and small package.
The ADF7020 is a low‑power, highly integrated FSK/ASK/OOK transceiver designed for license‑free ISM bands (433 MHz, 868 MHz, 915 MHz) and the Japanese RFID band at 950 MHz. It supports multiple modulation schemes, including GFSK, MSK, and GMSK, and meets ETSI‑300‑220, FCC Part 15, and Chinese SRD regulations.
Key features include a programmable output power range of –16 dBm to +13 dBm in 0.3 dB steps, on‑chip VCO with fractional‑N PLL, integrated 7‑bit ADC and temperature sensor, low‑IF receiver architecture, and automatic frequency‑control loop. The device operates from 2.3 V to 3.6 V and offers low current consumption (19 mA Rx, 26.8 mA Tx at 10 dBm).
| Supply Voltage | 2.3 V to 3.6 V |
|---|---|
| Output Power Range | ‑16 dBm to +13 dBm (0.3 dB steps) |
| Data Rate (FSK) | 0.15 kbps to 200 kbps |
| Operating Temperature Range | ‑40 °C to +85 °C |
The output power can be programmed in 0.3 dB steps from –16 dBm to +13 dBm.
