The AD826 is a high-speed, low-power dual operational amplifier with high output current drive capability and low power supply current. It is ideal for power sensitive applications such as video cameras and portable instrumentation, and can operate from a single +5V supply.

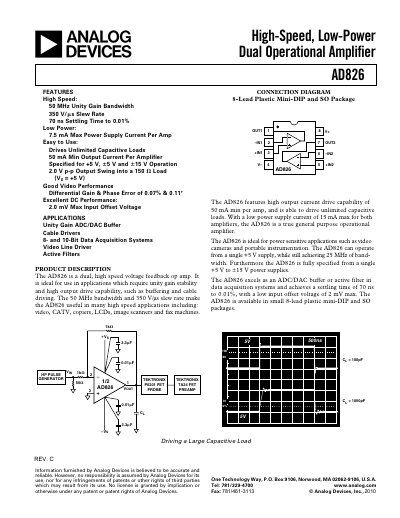

The AD826 is a dual, high‑speed, low‑power operational amplifier designed for applications requiring high output drive capability and fast settling. It can operate from a single +5 V supply up to ±15 V and delivers up to 50 mA per amplifier to drive unlimited capacitive loads. Key features include a 50 MHz unity‑gain bandwidth, 350 V/µs slew rate, 2 mV maximum input offset voltage, and a low quiescent current of 7.5 mA per amplifier. The datasheet provides detailed electrical characteristics, absolute maximum ratings, and application notes for ADC/DAC buffering, line driving, and low‑distortion amplification.
| Slew Rate | 350 V/µs |
|---|---|
| Maximum Output Current | 50 mA per amplifier |
| Quiescent Supply Current | 7.5 mA per amp |
Each amplifier can source up to 50 mA, allowing it to drive unlimited capacitive loads.
