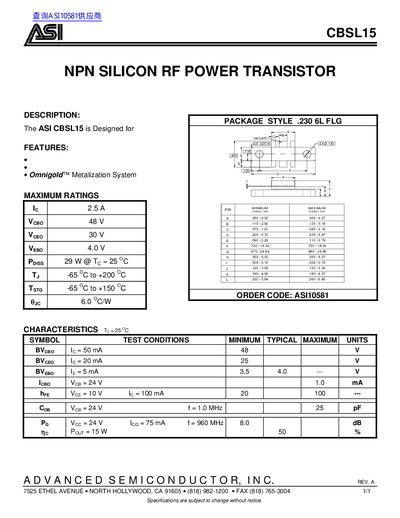

This document is the datasheet of ASI CBSL15. It introduces the features and characteristics of the product, including maximum ratings, test conditions, package dimensions, etc.
The document describes the ASI CBSL15, an NPN silicon RF power transistor designed for use with a .2306L FLG package style. It features the Omnigold Metalization System and is identified by order code ASI10581.
The datasheet lists maximum ratings including collector-emitter voltage (Vceo) of 48 V, collector-base voltage (Vcbo) of 25 V, and power dissipation (Ptot) of 29 W at 25°C. It also provides typical electrical characteristics such as current gain (hFE), capacitance (Cob), and noise figure (Nf).
| Package Style | .2306L FLG |
|---|---|
| Collector-Emitter Voltage (Vceo) | 48 V |
| Collector-Base Voltage (Vcbo) | 25 V |
| Emitter-Base Voltage (Vebo) | 4.0 V |
| Total Power Dissipation (Ptot) | 29 W @ To = 25°C |
| Operating Temperature Range | -65 °C to +150 °C |
The maximum power dissipation is 29 W at 25°C.
The operating temperature range is from -65°C to +200°C.
