Samsung K4S511633C-YL/N/P CMOS SDRAM Datasheet

K4S511633C-YL/N/P is a 32Mx16 54CSP 1/CS (VDD/VDDQ 3.0V/3.0V or 3.3V/3.3V) Mobile SDRAM, powered by 3.0V, LVCMOS compatible with multiplexed address, supports four-bank operation, MRS cycle with address key programming.

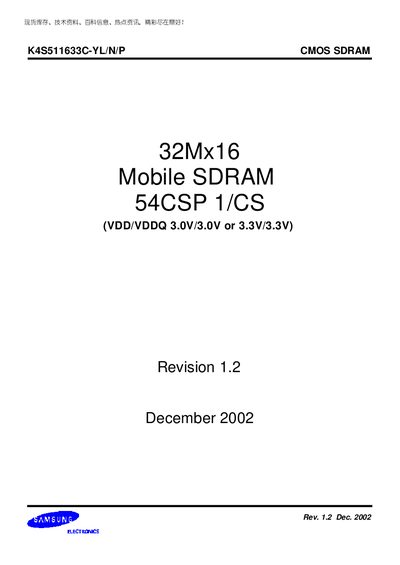

Samsung K4S511633C-YL/N/P CMOS SDRAM Datasheet - cover page
Brand
Samsung
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
8
File format
PDF
File size
79 KB
Published
01 April, 2012
Updated
30 September, 2023
MD5 checksum
BCFD1636FDC64AA0E3699C72664FA277

About this manual

The K4S511633C-YL/N/P is a mobile CMOS SDRAM device from Samsung, organized as 8M × 16 bits with four banks. It is designed for high‑performance memory systems in mobile and embedded applications.

The document details electrical specifications, package dimensions, timing parameters, and command tables, enabling designers to integrate the part into their circuits with proper voltage, frequency, and timing settings.

What's inside

  • Features
  • General Description
  • Ordering Information
  • Package Dimension and Pin Configuration
  • Absolute Maximum Ratings
  • DC Operating Conditions
  • DC Characteristics
  • AC Operating Test Conditions
  • AC Characteristics
  • Simplified Truth Table

Specifications

Memory organization8M × 16 bit × 4 banks
Supply voltage (VDD/VDDQ)2.7 V – 3.6 V
Maximum operating frequency100 MHz (CL=2)
Power dissipation (absolute max)1 W
Package type54‑ball CSP
CAS latency options1, 2, 3

Frequently asked questions

What is the operating voltage range for the K4S511633C-YL/N/P?

The device operates with a supply voltage between 2.7 V and 3.6 V.

What is the maximum operating frequency of this SDRAM?

It can run up to 100 MHz when configured with CL = 2.

What package does the K4S511633C-YL/N/P use?

The part is supplied in a 54‑ball CSP package.

Which CAS latency values are supported?

The SDRAM supports CAS latency values of 1, 2, and 3.
